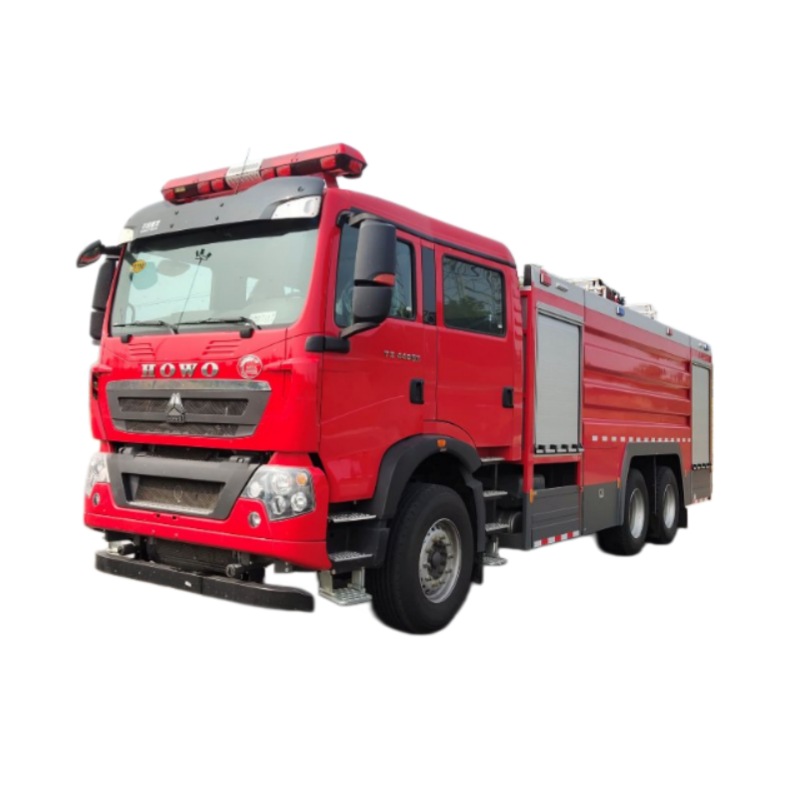

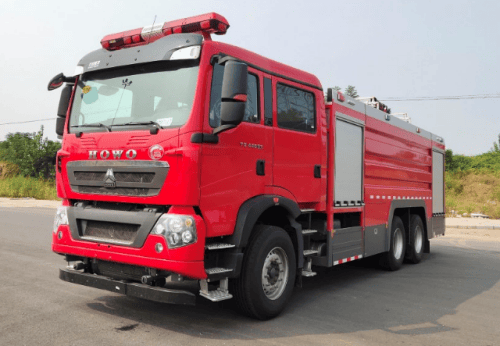

The MX5323GXFPM160 Foam Fire Truck is a heavy-duty firefighting vehicle designed for industrial fire protection, large-scale emergency response, petrochemical facilities, airports, ports, warehouses, and urban firefighting operations.
Built on a powerful 6×4 heavy-duty chassis, this foam fire truck combines a large-capacity water and foam storage system, high-flow firefighting pump, long-range fire monitor, and intelligent control technologies to provide rapid suppression capability for high-risk fire scenarios.
With an 11,800L water tank, 4,200L foam tank, 150L/s pump flow rate, and more than 95m water jet range, the MX5323GXFPM160 delivers reliable firefighting performance for demanding missions requiring sustained fire suppression.
The MX5323GXFPM160 adopts a robust 6×4 drive chassis with strong load capacity and excellent mobility, allowing it to operate effectively in industrial areas, highways, airports, and complex emergency environments.
The vehicle integrates large-volume firefighting liquid storage to support prolonged firefighting operations.
Water Tank: 11,800 L
Foam Tank: 4,200 L
The combined water and foam capacity enables continuous firefighting support without frequent refilling, making it suitable for:
The MX5323GXFPM160 is equipped with a high-flow firefighting pump system designed for fast deployment and powerful water output.
The high-capacity pump provides strong firefighting performance, enabling efficient delivery of large volumes of water and foam to fire zones.
The roof-mounted fire monitor provides powerful long-distance firefighting capability, allowing operators to attack dangerous fire areas while maintaining a safer operating distance.
Water Mode
Foam Mode
The wide operating range allows flexible targeting of high-rise, industrial, and open-area fire scenes.
The fire monitor supports both:
This dual-control design ensures operational flexibility under different mission conditions.
The integrated automatic foam proportioning system automatically controls foam concentration according to firefighting requirements.
Benefits:
Ideal applications include:
The MX5323GXFPM160 includes multiple practical features for improved operation efficiency.
Provides:
Lightweight and durable storage design for:
Advantages:
Ensures vehicle readiness through:
Provides safer access to upper equipment areas.
Features:
| Item | Specification |
|---|---|
| Vehicle Model | MX5323GXFPM160 |
| Drive Type | 6×4 |
| Engine Power | 341 kW Diesel Engine |
| Maximum Speed | 100 km/h |
| Crew Capacity | 6 Personnel |
| Vehicle Dimensions | 10260 × 2550 × 3780 mm |
| Water Tank Capacity | 11,800 L |
| Foam Tank Capacity | 4,200 L |
| Fire Pump Flow Rate | 150 L/s |
| Pump Pressure | 1.0 MPa |
| Water Priming Time | <80 s |
| Fire Monitor Flow Rate | 120 L/s |
| Water Jet Range | >95 m |
| Foam Jet Range | >90 m |
| Horizontal Rotation | 350° |
| Elevation Angle | -25° to 80° |
| Control Method | Wireless Remote + Manual Control |
Designed for rapid response to oil, fuel, and chemical fire emergencies.
Provides high-capacity foam suppression for aircraft and airport facilities.
Suitable for factories, power plants, warehouses, and large industrial zones.
Supports municipal fire departments with powerful water and foam delivery capability.
Ideal for ports, logistics centers, and hazardous material areas.
✔ 11,800L large-capacity water tank
✔ 4,200L foam storage capability
✔ 150L/s high-flow firefighting pump
✔ >95m long-range water projection
✔ 6×4 heavy-duty firefighting chassis
✔ Wireless remote fire monitor operation
✔ Automatic foam proportioning system
✔ Professional industrial firefighting configuration
✔ High mobility and rapid emergency deployment
The MX5323GXFPM160 Foam Fire Truck provides a powerful and reliable firefighting solution for industrial facilities, emergency response organizations, airports, ports, and professional fire departments requiring high-capacity foam suppression capability.
