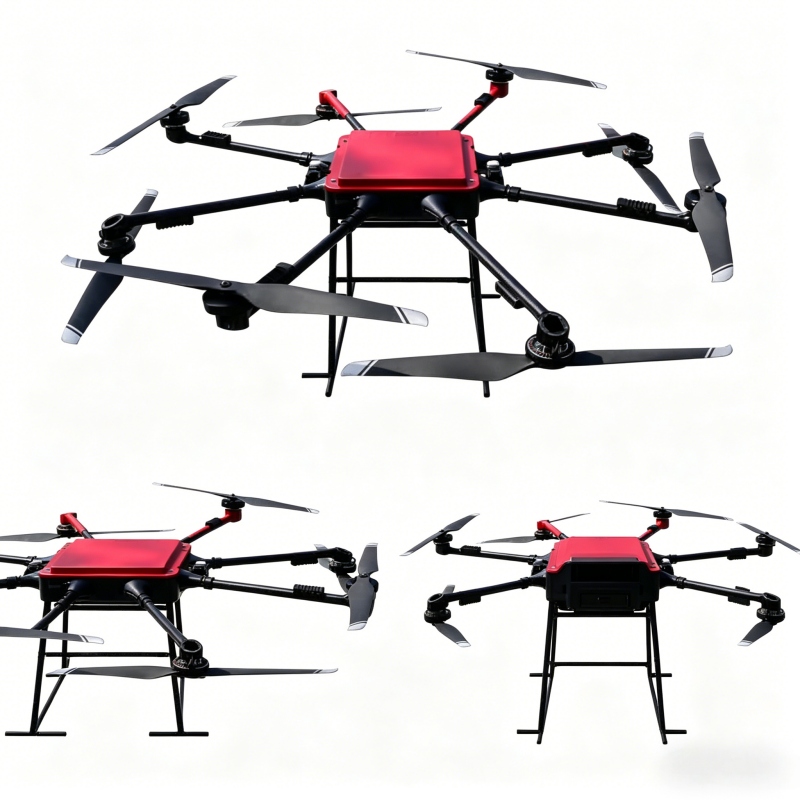

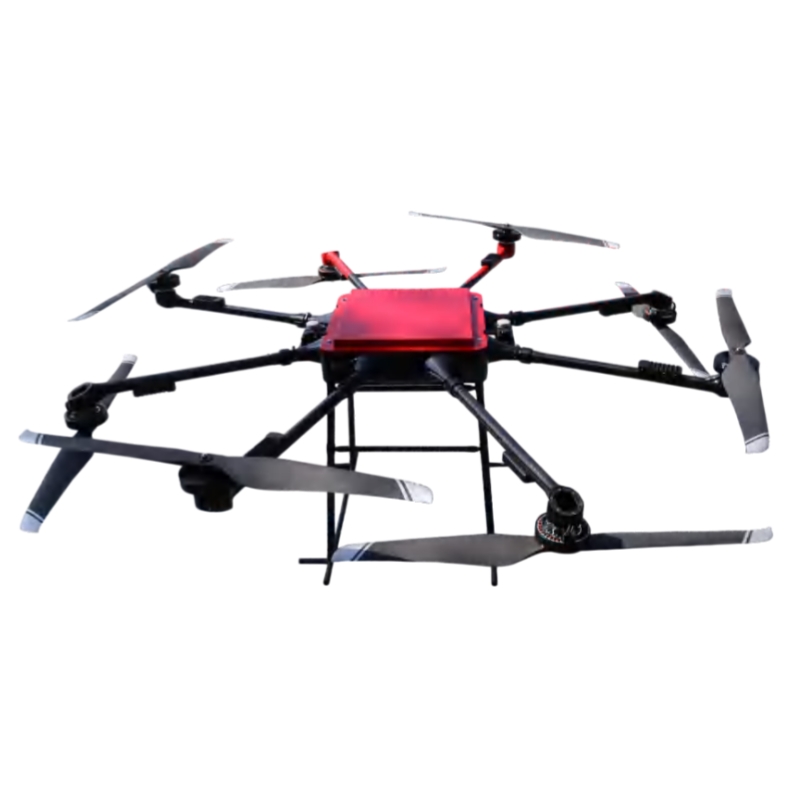

ACD-10030 firefighting and delivery drone – 100kg payload capacity for cargo or 4×20kg firefighting bombs. Tri-optics camera for day/night reconnaissance and target location. Connects to fire trucks or natural water sources. Ideal for building and forest fire fighting.
|
SN |
Item |
Parameter |
|
1 |
Body material |
Carbon fiber |
|
2 |
Symmetrical motor wheelbase |
3300mm |
|
3 |
Size |
Unfolded size: 4400x4400x1200mm |
|
4 |
Empty weight |
60 ± 1kg (without batteries) |
|
5 |
Max takeoff weight |
≥230kg |
|
6 |
Max working load |
100kg |
|
7 |
Full load flight time (100kg) |
≥25min (Altitude =500m, 25 ℃) |
|
8 |
Max level flight speed |
18m/s |
|
9 |
Cruising speed |
15m/s |
|
10 |
Max working altitude |
6000m |
|
11 |
Wind tolerance |
≤14m/s |
|
12 |
GPS hover accuracy |
Horizontal direction: ±0.2m |
|
13 |
Orientation |
RTK dual antenna orientation, no magnetic compass calibration required |
|
14 |
Remote control distance |
20km (depending on the local electromagnetic environment) |
|
15 |
Battery |
14S 35AH*6pcs |
|
16 |
Anti-interference |
1. Standard forward obstacle avoidance |
|
17 |
Delivery support |
1. A,B points dual control delivery mode |
100kg Maximum Payload – Carries 100kg of cargo for delivery missions or four 20kg firefighting bombs for fire suppression.
Dual Mission Capability – Single platform for delivery and firefighting – switch roles as mission demands.
Firefighting Bomb Deployment – Four 20kg bombs per sortie – knock down building and forest fires fast.
Water Spray from Any Source – Connects to fire truck or draws water from lakes, pools, and natural sources for continuous firefighting.

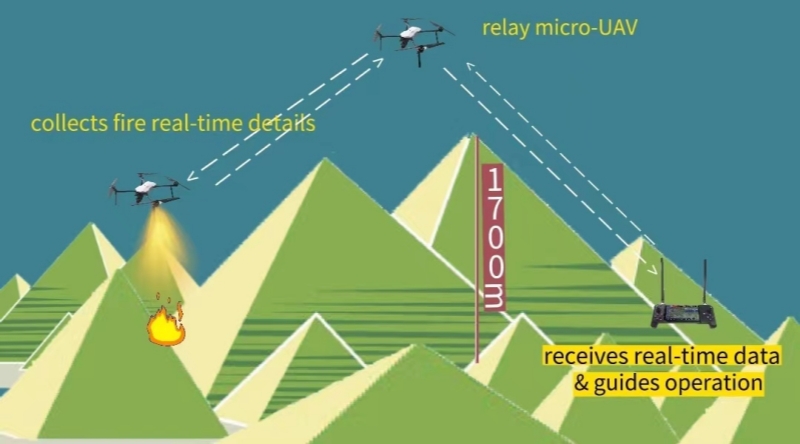

Tri-Optics Reconnaissance Camera – Day and night surveillance with visible, thermal, and low-light sensors.
Precision Target Location – Accurately locates target points for bomb deployment or water spraying.
All-Terrain Operation – Reliable performance in mountains, basins, sandy land, grassland, and desert.

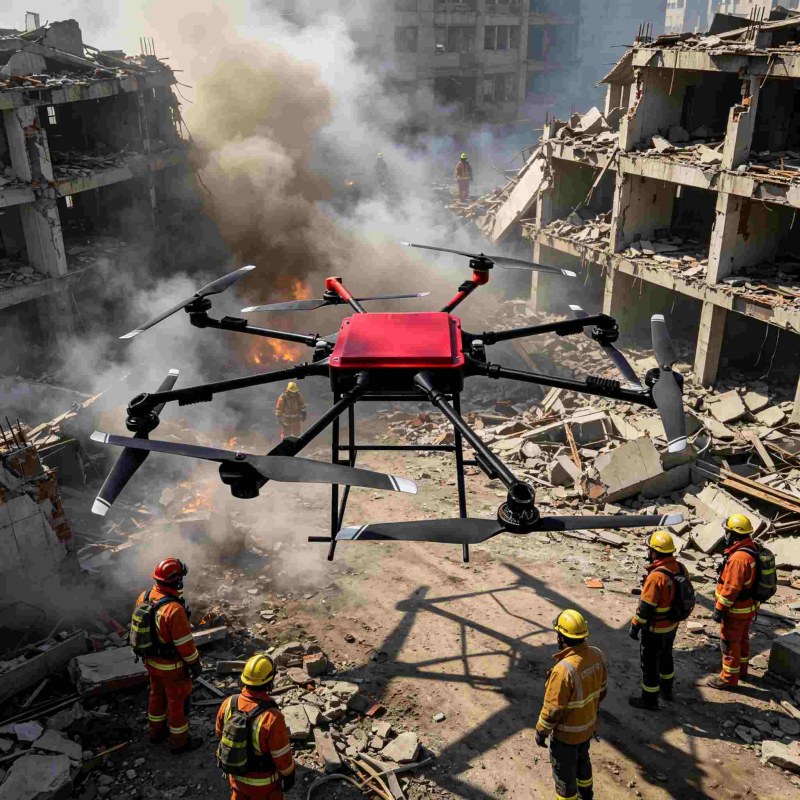

Building & Forest Fire Optimized – Purpose-built for urban structure fires and wildland firefighting missions.
Ideal for:
✔ Building fire fighting (high-rise, warehouse, industrial)
✔ Forest and wildland fire suppression
✔ Emergency cargo delivery to inaccessible areas
✔ Fire surveillance and reconnaissance
✔ Mountain, basin, desert, and grassland operations
✔ Disaster response and humanitarian aid
