DL275EThe 274cc Two-Cylinder Two-Stroke Piston Engine features a horizontally opposed cylinder configuration, air cooling, and solid-state magneto ignition. With a maximum take-off power of 15 kW at 7,200 rpm and a maximum continuous power of 13.5 kW, it provides a compact power solution for compatible propulsion systems.
The engine incorporates an aluminum crankcase, a drop-forged one-piece crankshaft, cast aluminum alloy pistons, and Nikasil-coated cylinder barrels. Its two diaphragm carburetors are designed for operation in different orientations and are supplied without a choke. The engine supports both pusher and tractor installations, with optional accessories available for specific integration requirements.
Product Description
This 274cc horizontally opposed piston engine uses a two-stroke operating cycle and an air-cooled design. Its 66 mm bore and 40 mm stroke provide a total displacement of 274 cm³ (16.72 cubic inches).
The engine is equipped with a solid-state magneto ignition system and two diaphragm carburetors without a choke. Its crankshaft is drop-forged in a one-piece design and utilizes two split connecting rods with needle bearings. The cylinders are made from cast aluminum alloy with Nikasil-coated barrels.
Rated at 15 kW maximum take-off power and 13.5 kW maximum continuous power at 7,200 rpm, the engine has an approximate dry weight of 7.8 kg in the magneto ignition configuration. It supports pusher and tractor installation layouts.
Optional equipment includes a shielded ignition system, long or short crankshafts, exhaust stacks, a 12 V starter rated at 0.3 kW, and a 28 V, 1,200 W generator. Buyers should confirm the required configuration and compatibility before ordering.
Key Features
Two-Cylinder Horizontally Opposed Design: Features two opposing cylinders in a compact engine configuration.
274cc Displacement: A two-stroke piston engine with a 66 mm bore and 40 mm stroke.
Air-Cooled Construction: Uses cast aluminum alloy cylinders with Nikasil-coated barrels.
Solid-State Magneto Ignition: Provides the specified ignition configuration, with battery ignition mentioned as an alternative in the general description.
Dual Diaphragm Carburetors: Two all-position carburetors without a choke.
Forged One-Piece Crankshaft: Incorporates two split connecting rods with needle bearings.
Pusher and Tractor Compatibility: Supports both installation configurations, subject to platform compatibility.
Optional Accessories: Available options include ignition shielding, crankshaft configurations, exhaust stacks, a starter, and a generator.
Technical Specifications
| Item | Specification |
|---|---|

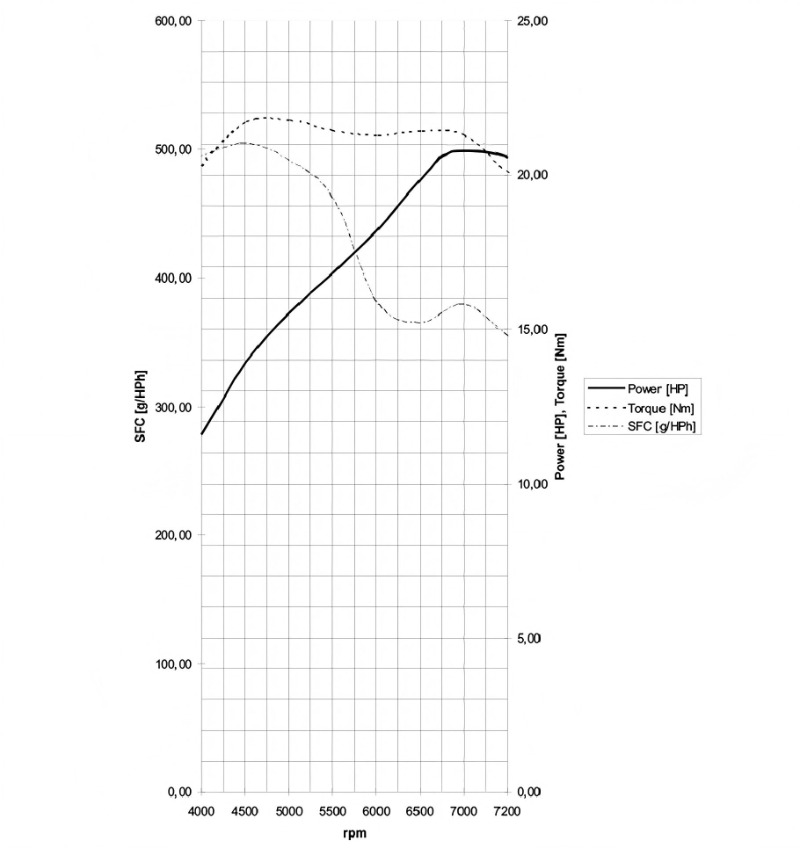

| Max. Take-Off Power | 15kW at 7200 rpm |
| Max. Continuous Power | 13.5kW at 7200 rpm |
| Bore | 66 mm / 2.60 inch |
| Stroke | 40 mm / 1.57 inch |
| Displacement | 274 cm³ / 16.72 cub. inches |
| Crankcase | Aluminum casting |
| Crankshaft | Drop forged, one piece utilizing 2 split connecting rods with needle bearings |
| Pistons | Cam ground, casted aluminum alloy |
| Cylinders | Casted aluminum alloy, with nicasil coated barrel |
| Ignition system | Solid state magneto ignition |
| Firing Order | Both cylinders simultaneously |
| Carburators | 2 diaphragm all position carburators, without choke |
| Starter | without |
| Generator | without |
| Dry weight approx. | 7.8 kg with magneto ignition |
| Fuel | AVGAS 100LL or 90 RON mixed with a suitable oil to the ratio of 1:25 or 1:50 (with synthetic oil)
|
| Optional Equipment | Shielded ignition system
|
Optional equipment
- Shielded ignition system
- Long and short crankshafts
- Exhaust stacks
- 12 V, 0.3 kW starter
- 28 V, 1,200 W generator
- Additional cylinder heat sinks (+0.6 kg)
Applications
This engine is designed for compatible power systems requiring a lightweight, air-cooled, two-stroke piston engine. Its pusher and tractor installation capability allows consideration for different propulsion layouts, subject to the mechanical and operational requirements of the target platform.
Before integration, buyers should confirm mounting dimensions, crankshaft configuration, fuel and lubrication requirements, cooling conditions, and ignition compatibility with the manufacturer.
The specific end-use application should be confirmed through the manufacturer's technical documentation.
Product Advantages
Compact Engine Configuration
The two-cylinder horizontally opposed design offers an alternative to conventional in-line engine layouts.
Lightweight Construction
The engine has an approximate dry weight of 7.8 kg in its magneto ignition configuration, excluding additional accessories unless otherwise specified.
Air-Cooled Architecture
The engine uses air cooling rather than a liquid-cooling circuit.
Carburetor-Based Fuel Delivery
Two diaphragm carburetors provide the specified fuel delivery arrangement and are designed for operation in different orientations.
Flexible Installation Options
Pusher and tractor configurations allow integration into compatible propulsion systems.
Optional Equipment Selection
Buyers can inquire about different crankshaft lengths, shielded ignition, exhaust components, a starter, and a generator according to project requirements.
Customization / OEM / ODM
For OEM projects and bulk procurement, buyers can contact our team to discuss engine configuration, crankshaft options, ignition requirements, and accessory availability.
Please provide the intended application, required quantity, installation layout, and preferred accessory configuration when requesting a quotation. Customization and compatibility must be confirmed by the manufacturer before order placement.
Suitable Buyers
This engine may be relevant to professional buyers evaluating compact two-stroke piston engines, including:
Engine distributors and importers
Equipment manufacturers
Propulsion system integrators
OEM manufacturers
Industrial engineering companies
Commercial and institutional procurement teams
Buyers should verify the intended application and technical compatibility before purchasing.
FAQ
Q1: What type of engine is this?
It is a 274cc, two-cylinder, horizontally opposed, air-cooled, two-stroke piston engine with solid-state magneto ignition.
Q2: What is the maximum power output?
The engine delivers a maximum take-off power of 15 kW at 7,200 rpm and a maximum continuous power of 13.5 kW at 7,200 rpm.
Q3: What is the engine displacement?
The total displacement is 274 cm³, equivalent to approximately 16.72 cubic inches.
Q4: What is the dry weight of the engine?
The approximate dry weight is 7.8 kg with magneto ignition. Optional accessories may increase the total installed weight.
Q5: What fuel does the engine use?
The supplied specification lists AVGAS 100LL or 90 RON gasoline mixed with suitable oil at a ratio of 1:25 or 1:50 when using synthetic oil. Confirm the applicable fuel and lubrication requirements with the manufacturer before operation.
Q6: Does the engine include a starter and generator?
Neither is included in the listed standard configuration. Optional equipment includes a 12 V, 0.3 kW starter and a 28 V, 1,200 W generator.
Q7: Does the engine support pusher and tractor installations?
Yes. The product description specifies both installation configurations. Final compatibility depends on the target platform and mounting requirements.
Q8: Is battery ignition available?
The general product description mentions solid-state magneto or battery ignition, while the detailed specification lists solid-state magneto ignition. Confirm the required ignition version with the manufacturer.
Q9: How can I request a quotation?
Contact the supplier with your required quantity, intended application, crankshaft preference, ignition configuration, and accessory requirements to request pricing and technical documentation.
