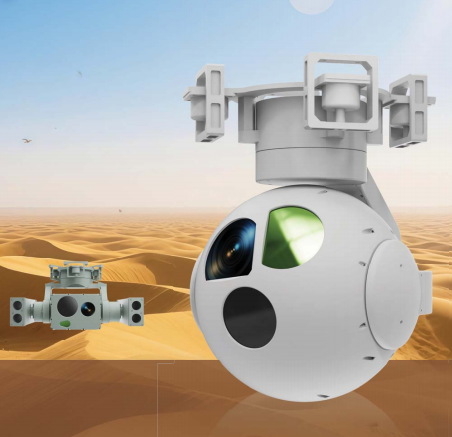

The TZ230TA Medium 3-Axis Gimbal Camera is a professional-grade UAV payload designed for medium-sized fixed-wing UAVs and multi-rotor drone platforms requiring long-range observation, precise target detection, and intelligent tracking capabilities.
Numéro d'article :
TZ230TA
As part of the Medium 3-Axis Gimbal Camera Series (2kg–20kg), the TZ230TA integrates a high-precision 3-axis servo stabilization platform, electro-optical zoom camera, cooled infrared thermal imaging camera, and laser rangefinder into a compact aerial payload system.
The advanced multi-sensor architecture combines visible and thermal imaging channels with AI-powered image processing, enabling:
With superior stabilization performance and MAVLink compatibility, the TZ230TA provides a reliable sensing solution for professional UAV applications including surveillance, search and rescue, emergency response, infrastructure inspection, and large-area aerial monitoring.
Unlike conventional 2-axis gimbal systems, the TZ230TA adopts a 3-axis servo stabilization structure to improve image stability during UAV flight.
Key advantages:
The stabilization system enables continuous monitoring even when the UAV operates in complex environments.
The TZ230TA combines three professional sensing modules:
The visible-light camera provides detailed daytime observation:
The cooled infrared sensor provides enhanced thermal detection performance compared with standard uncooled systems.
Features:
Integrated laser ranging provides accurate distance measurement:
The laser measurement function improves target positioning and operational awareness.

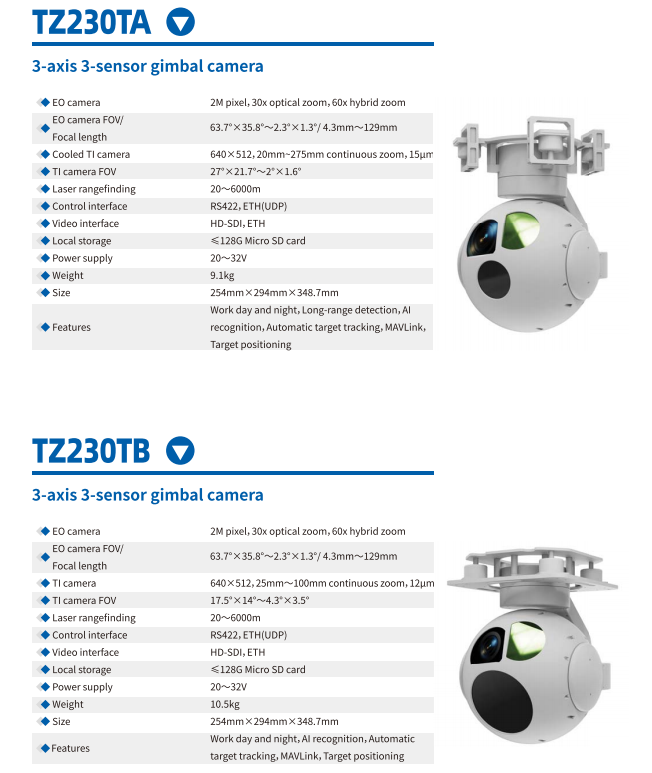

| Parameter | Specification |
|---|---|
| Model | TZ230TA |
| Type | 3-Axis 3-Sensor Gimbal Camera |
| Application Platform | Medium Fixed-Wing UAV / Multi-Rotor UAV |
| EO Camera | 2MP |
| EO Optical Zoom | 30× |
| EO Hybrid Zoom | 60× |
| EO Field of View | 63.7° × 35.8° ~ 2.3° × 1.3° |
| EO Focal Length | 4.3mm ~ 129mm |
| Thermal Camera Type | Cooled Infrared Camera |
| Thermal Resolution | 640×512 |
| Thermal Lens | 20mm ~ 275mm Continuous Zoom |
| Thermal Pixel Pitch | 15μm |
| Thermal FOV | 27° × 21.7° ~ 2° × 1.6° |
| Laser Rangefinder | 20m ~ 6000m |
| Control Interface | RS422 / ETH (UDP) |
| Video Interface | HD-SDI / ETH |
| Local Storage | ≤128GB Micro SD Card |
| Power Supply | 20–32V DC |
| Weight | 9.1kg |
| Dimensions | 254 × 294 × 348.7mm |
| Protocol Support | MAVLink |
The TZ230TA integrates an intelligent image processing unit to enhance autonomous observation capability.
The system supports:
The payload can automatically lock and track moving targets.
Functions include:
Combining EO imaging, thermal detection, and laser range measurement enables improved target location awareness.
The Medium 3-Axis Gimbal Camera Series (2kg–20kg) is designed for professional UAV platforms requiring extended range sensing capability.
The series integrates:
The system supports:
The TZ230TA is designed for integration with medium-sized UAV systems.
Compatible platforms include:
Supported interfaces:
The built-in MAVLink support enables integration with common UAV flight control systems.
The TZ230TA provides extended observation capability for:
The cooled thermal imaging sensor supports detection in:
Applications:
The combination of EO, thermal, and laser sensing enables:
Suitable for:
The cooled 640×512 thermal camera with 20–275mm continuous zoom provides enhanced detection capability for long-range missions.
EO zoom, thermal imaging, and laser ranging work together to provide complete aerial information.
Improves image quality and tracking accuracy during UAV flight.
Automatic recognition and tracking reduce operator workload.
MAVLink support enables seamless connection with modern UAV autopilot systems.
