Purpose-built IP66 waterproof gimbal for robot dogs and quadruped robots. Features dual 48MP cameras, 640×512 thermal imaging, 1200m laser rangefinder, and 6 TOPS AI computing for inspection, search & rescue, security, and tactical operations.

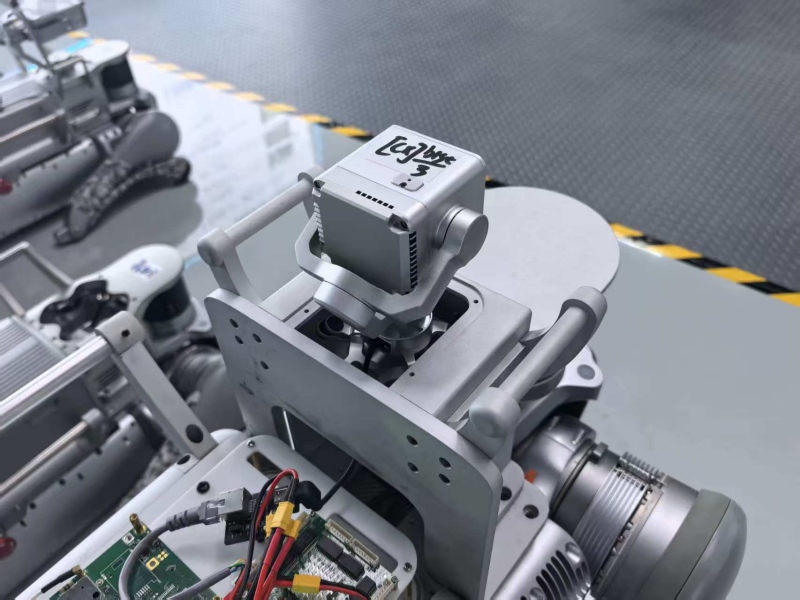

The IP66 Waterproof Robot Dog Gimbal is a ruggedized multi-sensor payload specifically designed for quadruped robots operating in harsh outdoor environments. Featuring dual 48MP visible cameras, 640×512 thermal imaging, a 1200m laser rangefinder, and 6 TOPS onboard AI computing, it enables inspection, surveillance, search and rescue, CBRN response, and tactical reconnaissance in rain, mud, and dusty conditions.
Certified against dust ingress and powerful water jets.
Suitable for:
Unlike conventional drone gimbals, this system is built for continuous ground deployment.
Integrated sensors include:
One payload provides complete situational awareness.
Run AI directly on the gimbal.
Supports:
No cloud connection required.
The infrared thermal camera detects heat signatures in:
Ideal for search and rescue and industrial inspection missions.
Integrated laser rangefinder provides:
Measurement range:
5m–1200m
Accuracy:
±1m
Robot dogs generate continuous vibration during walking and stair climbing.
Our stabilization system provides:
±0.005° vibration control
Optimized specifically for quadruped locomotion.
Display any combination of sensors:
Operators can rapidly identify anomalies and threats.
| Parameter | Specification |
|---|---|
| Protection Rating | IP66 |
| Weight | 180g–300g |
| Voltage | 12V–24V DC |
| Operating Temperature | -20°C to +55°C |
| Thermal Sensor | 640×512 |
| Visible Camera | Dual 48MP Sony CMOS |
| Laser Rangefinder | 5m–1200m |
| AI Computing | 6 TOPS |
| Storage | 128GB |
| Protocols | UART / PWM / UDP / S.BUS / Ethernet |
| Stabilization Accuracy | ±0.005° |
| Yaw Range | ±150° |
| Pitch Range | -140° to +50° |
| Roll Range | ±45° |
Successfully integrated with:
Custom mounting solutions are available.
Inspect substations, pipelines, refineries, and power plants in any weather.
Detect:
Deploy robot dogs after:
Thermal imaging helps locate victims in darkness and smoke.
Enable autonomous patrols for:
Thermal detection identifies intruders at night.
Support:
The IP66 design withstands harsh battlefield environments.
After chemical or radiological missions, the gimbal can be pressure washed and decontaminated.
Ideal for:
Integration kit includes:
SDK and API documentation are available.
Supported interfaces:
A robot dog gimbal is a stabilized multi-sensor payload mounted on quadruped robots for inspection, surveillance, thermal imaging, and AI target tracking.
Drone gimbals are designed for flight and typically cannot withstand walking vibration, mud splashes, or pressure washing.
IP66 means complete protection against dust ingress and resistance to powerful water jets from any direction.
Yes. The IP66 enclosure allows operation in rain, mud, and outdoor environments.
Yes. The system is designed to withstand pressure washing and decontamination procedures.
Yes. The 6 TOPS AI platform supports custom model deployment.
Unitree, DeepRobotics, CVTE, and custom quadruped robots.
Yes. Thermal imaging detects heat signatures regardless of lighting conditions.
5m–1200m with ±1m accuracy.
Yes. Full SDK, API documentation, and integration support are available.
✓ Purpose-built for quadruped robots
✓ True IP66 waterproof protection
✓ Thermal imaging and laser rangefinder
✓ AI-powered target tracking
✓ Pressure washable design
✓ Open platform compatibility
✓ Full integration support
✓ Field-proven on multiple robot dog platforms
Request a Quote
Looking for an IP66 thermal camera payload for your robot dog platform?
Contact us today for:
• Technical datasheets
• SDK documentation
• OEM/ODM customization
• Integration support
• Volume pricing
• International shipping
