CH-3D MALE UAV 28 hour endurance 200kg payload reconnaissance strike integrated drone

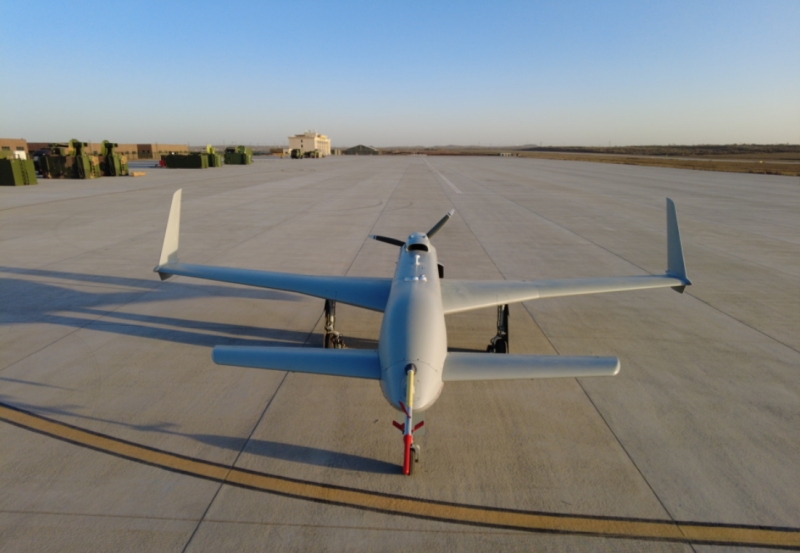

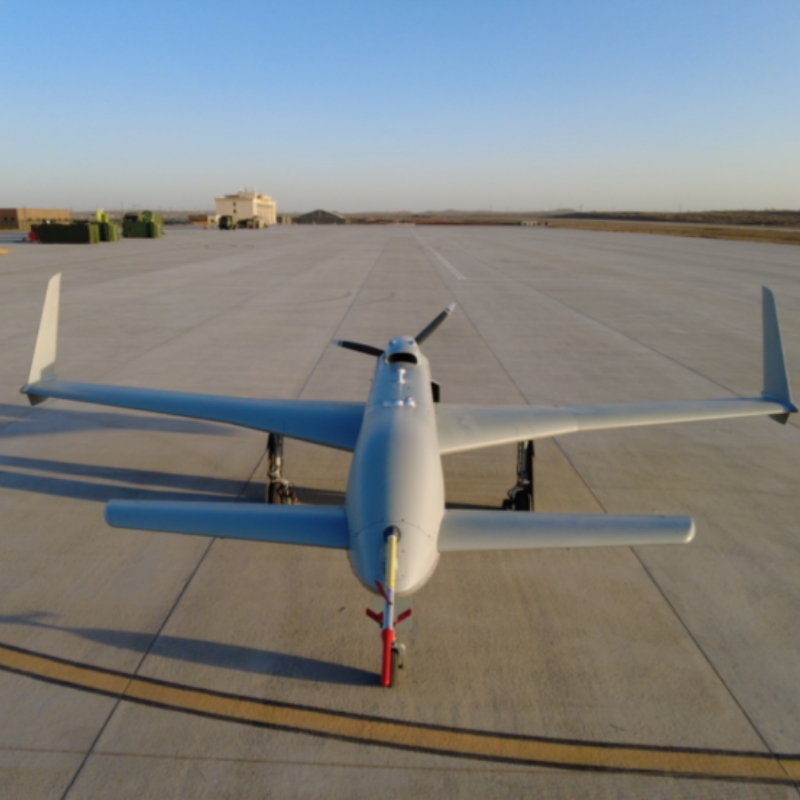

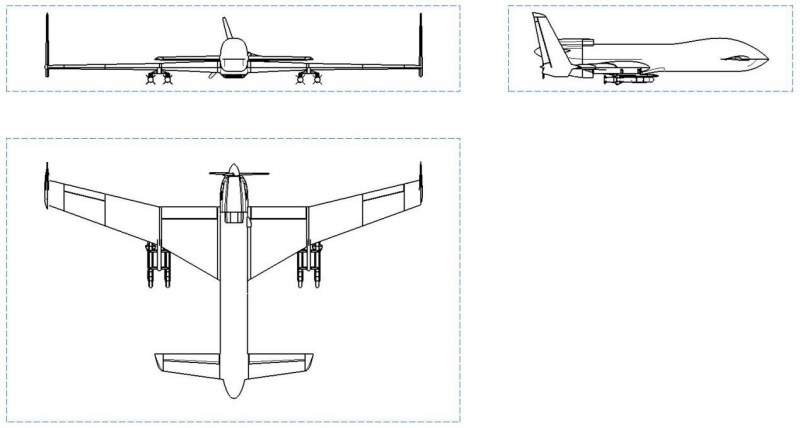

pusher canard configuration with double vertical tails and tricycle retractable landing gear

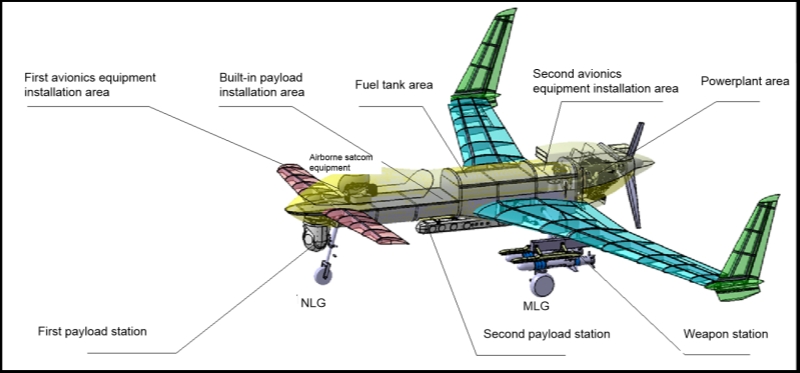

nose and middle fuselage payload areas for weapons and sensors

SATCOM data link configuration for beyond line of sight operations

CH-3D Strike Integrated UAS Light MALE Reconnaissance UAV

CH-3D light MALE reconnaissance/strike integrated UAV – 28h endurance, 200kg payload, 9000m ceiling, 280km/h max speed. Pusher canard configuration, LOS/SATCOM data link, tricycle retractable landing gear. Complete UAS with 3 aircraft, GCS, and support equipment.

Inquiry now

PRÉSENTATION DU PRODUIT

Main Parameters

No.	Specification	Design Specification
1	Max. take-off weight	≥850 kg
2	Max. payload capacity	200 kg
3	Control radius	200 km (LOS intervisibility) ≥2000 km (satcom data link, within satcom beam coverage)
4	Number of hanging weapon	4
5	Max. level flight speed	280 km/h
6	Cruise speed	160 km/h~220 km/h
7	Service ceiling	≥ 9000 m (altitude)
8	Cruise altitude	3000 m~6000 m (altitude)
9	Max. endurance	≥ 28h (EO reconnaissance type)
10	Take-off/landing mode	Horizontal wheeled take-off and landing, and automatic take-off and landing (with manual intervention available)
11	Take-off and landing run distance	650 m (sea level)
12	Runway entry and exit modes	Automatic taxiing (with manual intervention available)
13	Payload area number	4
14	Satcom integration	Supported

28-Hour Maximum Endurance – Persistent ISR and strike capability for extended missions.

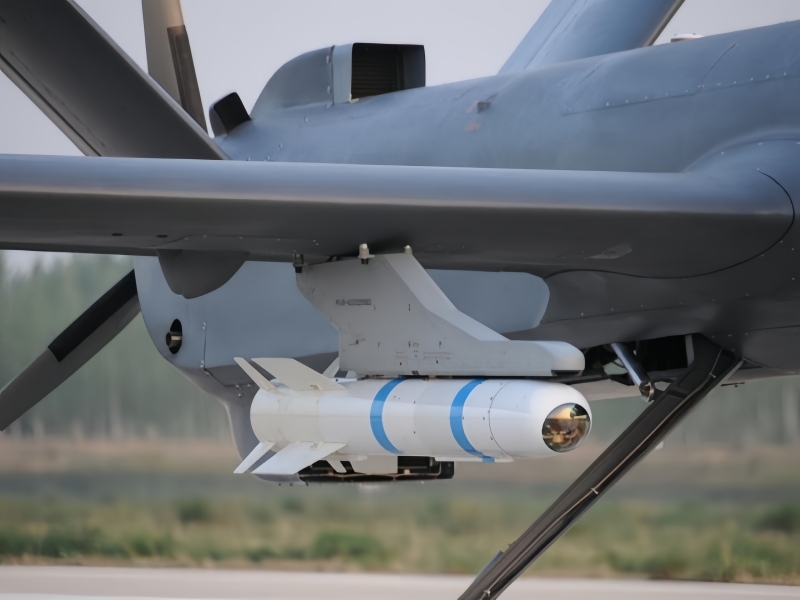

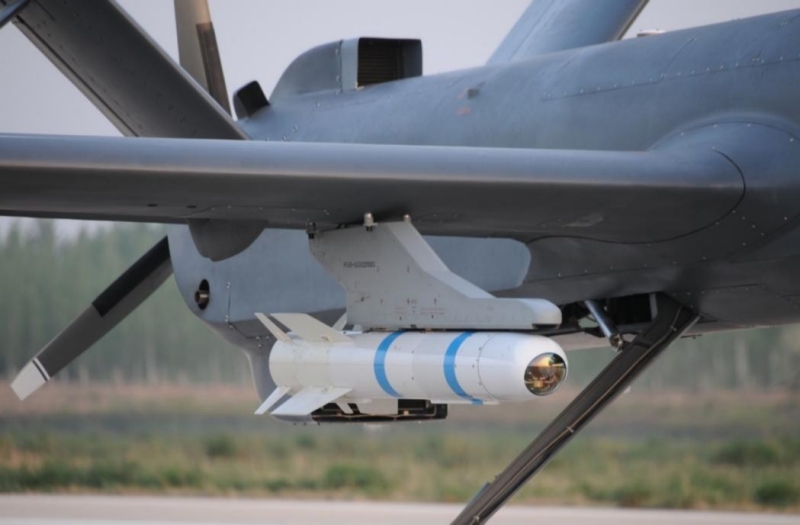

200kg Mission Payload – Carries multiple weapons, sensors, and reconnaissance equipment.
9000m Design Ceiling – Operates at high altitude, above most air defenses and weather.
280km/h Maximum Speed – Rapid response and fast transit to target areas.
Pusher Canard Configuration – Aerodynamic efficiency with double vertical tails for stability.

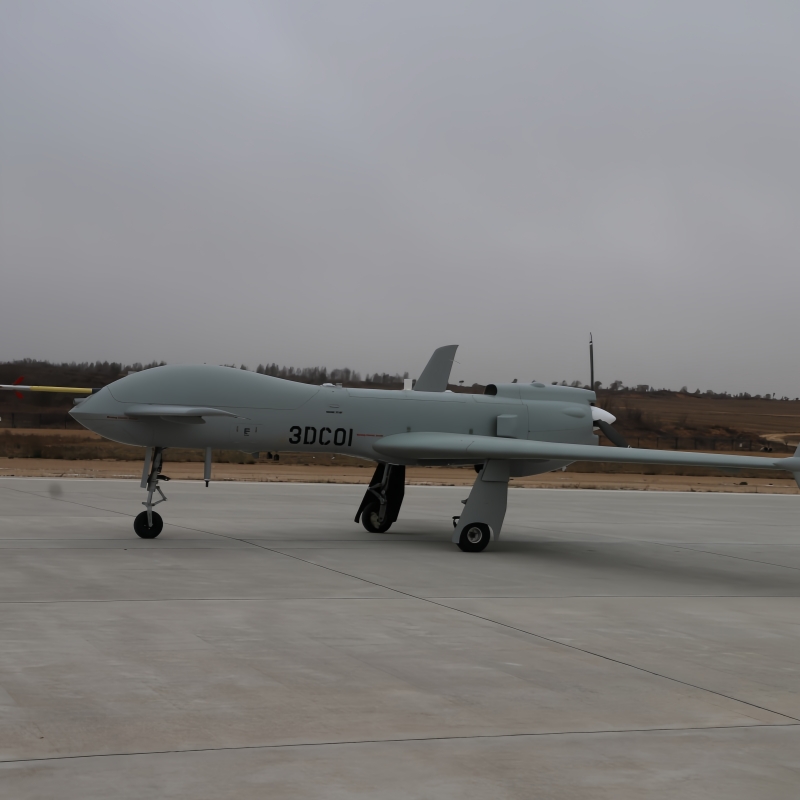

Tricycle Retractable Landing Gear – Clean aerodynamic profile during flight, stable ground handling.
Dual Payload Areas – Nose and middle fuselage configurations for flexible mission equipment installation.
LOS & SATCOM Data Link Options – Standard LOS configuration. SATCOM upgrade available for beyond-line-of-sight operations.
Complete UAS Package – Standard system includes 3 CH-3D UAVs, 1 GCS, ground support equipment, plus payloads and weapons.
Excellent Cost-Effectiveness Ratio – High performance at an affordable price point.

Ideal for:
✔ Persistent intelligence, surveillance, and reconnaissance (ISR)
✔ Precision strike and armed reconnaissance
✔ Border security and maritime patrol
✔ Counter-terrorism operations
✔ Battlefield damage assessment
✔ Beyond-line-of-sight SATCOM missions (optional)
