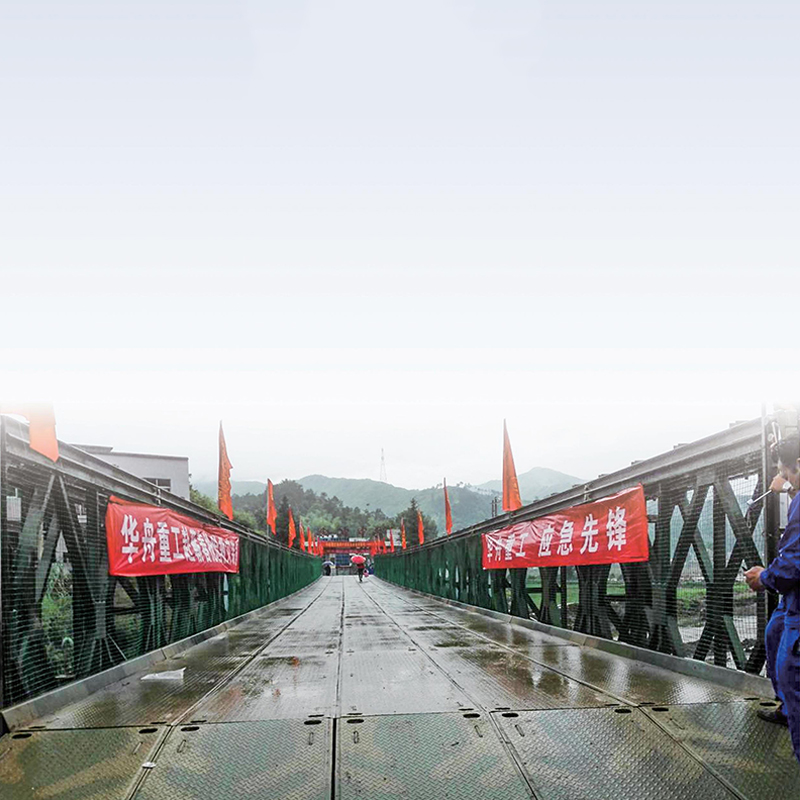

CB200 Compact Panel Bridge

The CB200 Compact Panel Bridge is a high-performance modular solution engineered for rapid deployment in critical infrastructure scenarios. As a flagship model in our compact panel bridge series, it combines modular design flexibility with HL93/HA/HB load compliance, supporting a maximum tacked load of 60t across spans from 6m to 54m.

CB200 Compact Panel Bridge: Modular Solution for Rapid Crossing​

Our Compact Panel Bridge series, with the CB200 as a flagship model, is engineered for fast deployment, long-span adaptability, and reliable load-bearing performance. It serves as a critical temporary or semi-permanent crossing solution for emergency rescue, infrastructure construction, and military operations.​

Core Advantages​

Modular Design: All bridge components feature standardized sizes, enabling flexible assembly based on span and load needs. Components boast exceptional interchangeability and connection stability, reducing on-site adjustment time.​

High Reusability: Bridge components are made of durable, corrosion-resistant materials, supporting ≥10 cycles of disassembly and reuse across different projects, lowering long-term costs.​

Customizable Span & Load: Tailored to specific project requirements, the CB200 accommodates spans from 6m to 54m and meets HL93/HA/HB load standards, with a maximum tacked load of 60t.​

Technical Specification (CB200 & Series Reference)​

CB200 Core Specifications​

Type: CB200​

Designed Span: 6–54m​

Designed Load: HL93, HA, HB; Tacked Load 60t​

Dimension (L×W): 2.134×3.048m​

Carriageway Width: Single Lane 4.2m; Double Lane 7.35m​

Deck Type: Steel Deck (high strength, anti-slip)​

Other Series Reference​

CB100​

Designed Span: 6–60m​

Designed Load: HS25-44, Axle Load 20t, Tacked Load 50t​

Dimension (L×W): 1.448×3.048m​

Carriageway Width: Single Lane 4.2m; Double Lane 7.35m​

Deck Type: Steel Deck, Wood Deck​

CB200A​

Designed Span: 6–60m​

Designed Load: HL93, HA, HB; Tacked Load 60t​

Dimension (L×W): 2.134×3.048m​

Carriageway Width: Single Lane 4.2m; Double Lane 7.35m​

Deck Type: Steel Deck​

CB250​

Designed Span: 35–87.6m​

Designed Load: HS20-44, HS25-44, HL93, HA, HB; Tacked Load 60t​

Dimension (L×W): 2.4×5.84m​

Carriageway Width: Single Lane 4.2m; Double Lane 7.35m​

Deck Type: Steel Deck​

Application Scenarios​

Emergency Rescue: Rapidly establishes crossings after natural disasters (floods, earthquakes) to facilitate rescue team and supplies transportation.​

Infrastructure Construction: Serves as a temporary bridge for highway/railway construction sites, avoiding long detours for construction vehicles.​

Military Operations: Supports rapid troop and equipment movement in field environments, with quick disassembly to adapt to tactical needs.​

Rural & Remote Areas: Provides semi-permanent crossing solutions for areas with underdeveloped transportation, replacing unstable temporary structures.​

Support & Service​

Custom Design: We offer tailored span and load configurations beyond standard specs to match unique project demands.​

On-Site Guidance: Our technical team provides on-site erection training and guidance to ensure smooth installation.​

Component Supply: Long-term supply of replacement parts (panels, connectors, fasteners) to maintain bridge performance over multiple uses.
